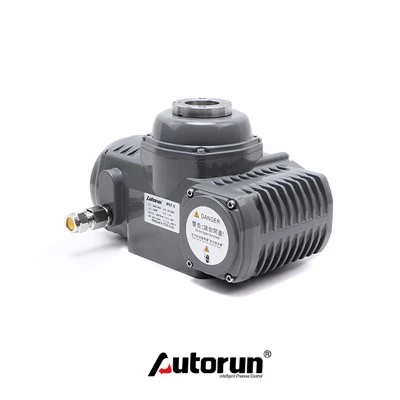

Compact motorized rotary actuator
Electric actuator series compact motorized rotary actuator is suitable to be located in small spaces and designed for butterfly valve, ball valve, damper and automation of rotary machines.Our Electric series compact motorized rotary actuator can be customized according to the special requirements of customers. Based on a wide range of products including high performance multi turn, partl turn,and linear actuators, we offer automated solutions for all valve types, ranging from ball valves to dampers.
- 빠른 배송
- 품질 보증
- 연중무휴 고객 서비스
제품 소개
product description：
- Rated voltage: AC220V [AC95-265V], AC/DC24V
- Rated torque: 20N.m
- Running time: about 10 seconds
- Control mode: 4-20MA 0-20mA 0-5V 1-5V 0-10V 2-10V, [Optional fault alarm +A]
- Feedback mode: 4-20mA 0-20mA 0-5V 1-5V 0-10V 2-10V
- Position accuracy: ±1%(software can be set)
- high performance brushless motor, built-in over load protection
| Parts | Material | Parts | Material | ||
| 1 | Actuator | Heatproof ABS | 7 | 1.3" LCD Screen | OLED |
| 2 | Indicator | Transparent AS | 8 | Label | PVC |
| 3 | Screwx4 | 304 | 9 | Waterproof cable gland | Heatproof ABS |
| 4 | Manual shaft | 304 | 10 | Hexagon wrench | Tool steel |
| 5 | Oil seal | NBR | 11 | Wrench fixed | Nilon |
| 6 | Key | Rubber | 12 | Lid seal | NBR |
